NEMA 3R型和12型自立，雙門雙出入口電氣外殼和機柜 - 尺寸為72x48 ～ 90x72"

SCE-FSDAD Series Indoor/Outdoor Electrical Enclosures

NEMA Type 3R & 12 Free-Standing, Two-Door Dual-Access Indoor/Outdoor Electrical Enclosures and Control Panels by Saginaw Control | SCE-FSDAD Series Indoor/Outdoor Electrical Enclosures

^￥63,412.20 SCE-724824FSDAD

下單

0.104" Carbon Steel
Seams Continuously Welded and Ground Smooth, No Holes or Knockouts
Strong, Rigid Construction
Lifting Eyes for Easy Handling
Black Zinc Die Cast Keylocking/Padlocking Handle
3-Point Latching Mechanism
Latch Rods Have Rollers for Easier Door Closing
Concealed Hinge
Flange Trough Collar Around All Sides of Door Opening
Removable Print Pocket Provided On Door With 3-Point Latch
Mounting Channels Welded Horizontally On Sides of Interior Body At Top, Bottom and Middle For Mounting Optional Panels or Rack Mounting Angles
Oil Resistant Gasket
Removable and Interchangeable Doors
Ground Stud on Door

NEMA標準外殼 - 查看相關產品

產品描述

Application
The SCE-FSDAD Series indoor/outdoor electrical enclosures are designed to house electrical and electronic controls, instruments and equipment in areas which may be regularly hosed down or are in very wet conditions. These electrical control panels provide protection from dust, dirt, oil and water. This outdoor electrical control panel is the solution for waterproof and weatherproof applications. The enclosures are extra deep with front and rear access for applications requiring more interior space and have provisions for optional surface mounting or rack mounting of almost any type of equipment.
by Saginaw Control
Finish
White powder coating inside and ANSI-61 recoatable gray finish outside over phosphatized surfaces. Optional panels are powder coated white.

Industry Standard IS3
NEMA Type 3R, 12 & Type 13
UL Listed Type 3R, 12
CSA TYpe 3R, 12
IEC 60529 IP 55

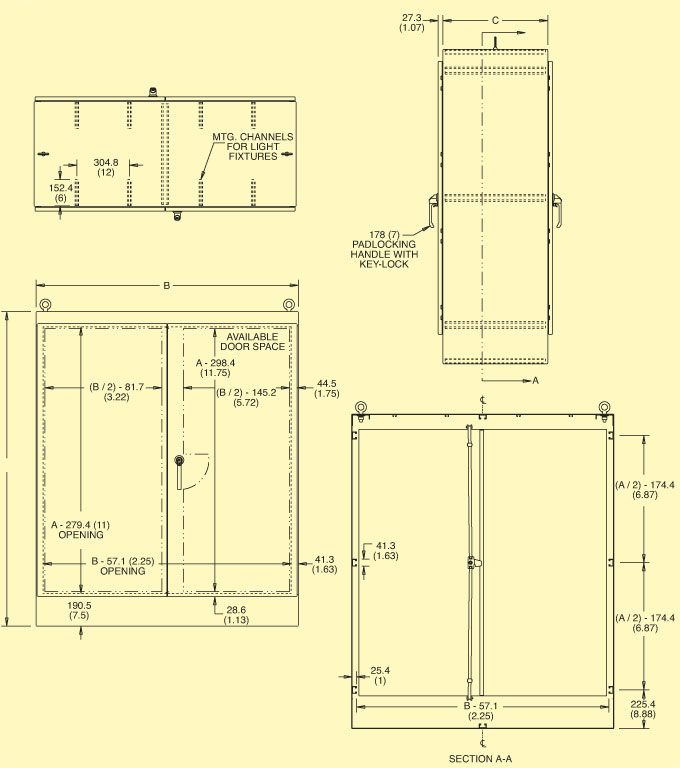

SCE_FSDAD Series Dimensions Diagram

訂購所有價格均為人民幣稅前價格，不包括13%增值稅和運費！(指定型號)

產品編號產品描述

數量

產品描述

Dual Access Metal Electrical Enclosures for Indoor & Outdoor Applications - Drip Shield required for NEMA 3R Rating

Must Ship LTL Truck Freight

SCE-724824FSDAD

￥63,412.20

貨期: 5 周

NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 48"W, 24"D

SCE-72P48F1

￥9,450.53

貨期: 5 周

Full sub-panel for 72 x 48 electrical enclosure

SCE-72P48F2

￥6,126.58

貨期: 5 周

Half sub-panel for 72 x 48 electrical enclosure

SCE-726024FSDAD

￥71,235.11

貨期: 5 周

NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 60"W, 24"D

SCE-726036FSDAD

￥81,969.81

貨期: 5 周

NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 60"W, 36"D

SCE-72P60F1

￥11,014.32

貨期: 5 周

Full sub-panel for 72 x 60 electrical enclosure

SCE-72P60F2

￥6,857.72

貨期: 5 周

Half sub-panel for 72 x 60 electrical enclosure

SCE-727224FSDAD

￥79,058.00

貨期: 5 周

NEMA Type 12 free-standing single-door electrical enclosure, 72"H, 72"W, 24"D

SCE-72P72F1

￥12,368.26

貨期: 5 周

Full sub-panel for 72 x 72 electrical enclosure

SCE-72P72F2

￥7,582.07

貨期: 5 周

Half sub-panel for 72 x 72 electrical enclosure

SCE-907224FSDAD

￥90,719.21

貨期: 5 周

NEMA Type 12 free-standing single-door electrical enclosure, 90"H, 72"W, 24"D

SCE-90P72F1

￥14,859.50

貨期: 5 周

Full sub-panel for 90 x 72 electrical enclosure

SCE-90P72F2

￥8,936.00

貨期: 5 周

Half sub-panel for 90 x 72 electrical enclosure

Drip Shields - Required for NEMA 3R Rating

SCE-DS48N4

￥1,424.59

貨期: 5 周

Drip shield for 48" wide electrical enclosure

SCE-DS60N4

￥1,724.49

貨期: 5 周

Drip shield for 60" wide electrical enclosure

SCE-DS72N4

￥1,942.61

貨期: 5 周

Drip shield for 72" wide electrical enclosure

† 所有金額以RMB顯示
訂購示例: (1) SCE - 724824FSDAD Type 12 Free - Standing Two - Door Dual - Access Carbon Steel Enclosure, ￥63,412.20
