NEMA 12型鋼傾斜前按鈕外殼，用于22mm和30.5mm按鈕

SCE-PBA Series Sloping Pushbutton Enclosures

NEMA Type 12 Steel Sloping Front Pushbutton Enclosures for 22mm & 30.5mm Push Buttons | SCE-PBA Series Sloping Pushbutton Enclosures

￥2,762.06 SCE-6PBA

1年保修
  • 0.075" Carbon Steel
  • Continuously Welded Seams
  • Captivated Cover Screws Thread Into Sealed Wells
  • 4-Way Pushbutton Holes Accept All Brands of Oil-Tight Pushbuttons, Switches and Pilot Lights
  • Oil-Resistant Gasket
  • NEMA 12/13 Environmental Rating
NEMA標準外殼 - 查看相關產品

產品描述

Application
Designed to offer protection for all standard brands of oil-tight pushbuttons, switches, and pilot lights where slanted surfaces are desired. It offers protection from dust, dirt, oil and water.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

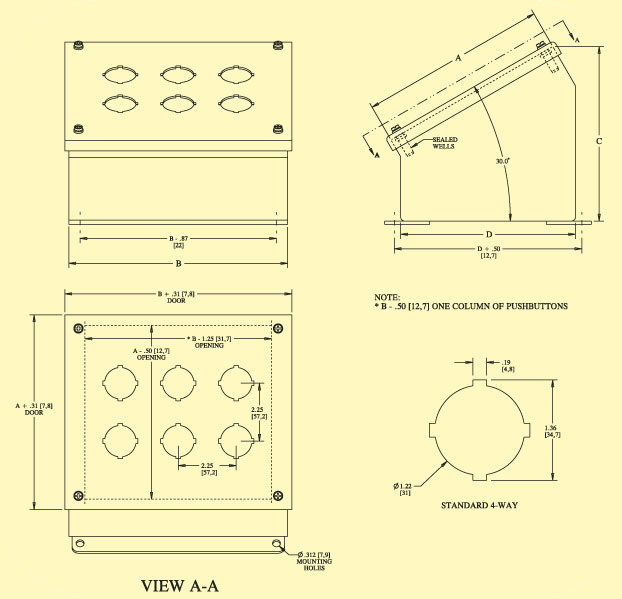

SCE_PBA Series Dimension Diagrams
訂購 所有價格均為人民幣稅前價格，不包括13%增值稅和運費！(指定型號)
網上下單立享5%折扣!
產品編號產品描述
數量
產品描述
NEMA Type 12 Front Sloping Pushbutton Enclosures for 30.5mm Pushbuttons
Quick Ship
SCE-1PBA
￥1,604.44
貨期: 5 周

1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-2PBA
￥1,868.44
貨期: 5 周

2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-3PBA
￥2,125.71
貨期: 5 周

3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-4PBA
￥2,396.50
貨期: 5 周

4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-4SPBA
￥2,525.11
貨期: 5 周

4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-6PBA
￥2,762.06
貨期: 5 周

6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-8PBA
￥3,499.94
貨期: 5 周

8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-9PBA
￥3,648.88
貨期: 5 周

9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73
Quick Ship
SCE-10PBA
￥3,872.26
貨期: 5 周

10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-12PBA
￥4,231.07
貨期: 5 周

12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-12SPBA
￥3,804.58
貨期: 5 周

12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69
Quick Ship
SCE-16PBA
￥4,522.17
貨期: 5 周

16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69
NEMA Type 12 Front Sloping Pushbutton Enclosures for 22mm Pushbuttons
Quick Ship
SCE-1PBAI
￥1,604.44
貨期: 5 周

1 PB enclosure, Height=3.50 Width=3.25 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-2PBAI
￥1,658.60
貨期: 5 周

2 PB enclosure, Height=3.50 Width=5.50 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-3PBAI
￥1,997.09
貨期: 5 周

3 PB enclosure, Height=3.50 Width=7.75 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-4PBAI
￥2,396.50
貨期: 5 周

4 PB enclosure (1x4), Height=3.50 Width=10.00 Depth(C)=4.84 Depth(D)=3.53
Quick Ship
SCE-4SPBAI
￥2,294.94
貨期: 5 周

4 PB enclosure (2x2), Height=7.25 Width=6.25 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-6PBAI
￥2,694.37
貨期: 5 周

6 PB enclosure (2x3), Height=7.25 Width=8.50 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-8PBAI
￥3,344.24
貨期: 5 周

8 PB enclosure (2x4), Height=7.25 Width=10.75 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-9PBAI
￥3,648.88
貨期: 5 周

9 PB enclosure (3x3), Height=9.50 Width=8.50 Depth(C)=7.88 Depth(D)=8.73
Quick Ship
SCE-10PBAI
￥3,648.88
貨期: 5 周

10 PB enclosure (2x5), Height=7.25 Width=13.00 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-12PBAI
￥3,980.61
貨期: 5 周

12 PB enclosure (2x6), Height=7.25 Width=15.25 Depth(C)=6.75 Depth(D)=6.78
Quick Ship
SCE-12SPBAI
￥4,041.52
貨期: 5 周

12 PB enclosure (3x4), Height=11.75 Width=8.50 Depth(C)=9.00 Depth(D)=10.69
Quick Ship
SCE-16PBAI
￥4,522.17
貨期: 5 周

16 PB enclosure (4x4), Height=11.75 Width=10.75 Depth(C)=9.00 Depth(D)=10.69
Base and Column Accessories
Quick Ship
SCE-18SBASE
￥2,563.53
貨期: 5 周

Pedestal Base 18.00 x 18.00 x 1.00
Quick Ship
SCE-24SBASE
￥5,287.14
貨期: 5 周

Pedestal Base 24.00 x 24.00 x 1.00
Quick Ship
SCE-44CCOL
￥4,082.15
貨期: 5 周

Straight Column 4.00 x 4.00 x 35.00
Quick Ship
SCE-44PBCOL
￥5,294.24
貨期: 5 周

Angled Column 4.00 x 4.00 x 35.00
Quick Ship
SCE-66CCOL
￥6,666.56
貨期: 5 周

Straight Column 6.00 x 6.00 x 35.00
Quick Ship
SCE-66PBCOL
￥7,983.14
貨期: 5 周

Angled Column 6.00 x 6.00 x 35.0
Quick Ship
OMPBD7-AHA1
￥412.40
貨期: 2 周

30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel
Quick Ship
POWER CORD-SE-M16
￥172.46
貨期: 2 周

8' Power cord with M16 cable gland strain relief, 3x16 AWG, 250Vac max.
† 所有金額以RMB顯示
 訂購示例: (1) SCE - 1PBA Type 12 Sloping Front 30.5mm Pushbutton Enclosure, ￥1,604.44
